Public charging networks have expanded quickly across the US, but the vast majority of EV charging still happens at home overnight, which is a big part of the appeal of owning an electric vehicle in the first place. Installing a home charger is a smaller project than most people expect, though a few decisions upfront determine both the cost and how well the setup actually fits your car and your electrical system.
Level 1 versus Level 2: understanding what you're actually installing
Every EV comes with a Level 1 charging cable that plugs into a standard 120-volt household outlet, the same kind used for most appliances, but it charges very slowly, often adding only three to five miles of range per hour. A Level 2 charger runs on a 240-volt circuit, the same voltage as an electric dryer or oven, and charges roughly five to ten times faster, typically adding 20 to 40 miles of range per hour depending on the vehicle and the charger's output. For anyone driving a meaningful daily distance, a Level 2 charger is generally the point of installing a home charger at all.
Hardwired versus plug-in chargers

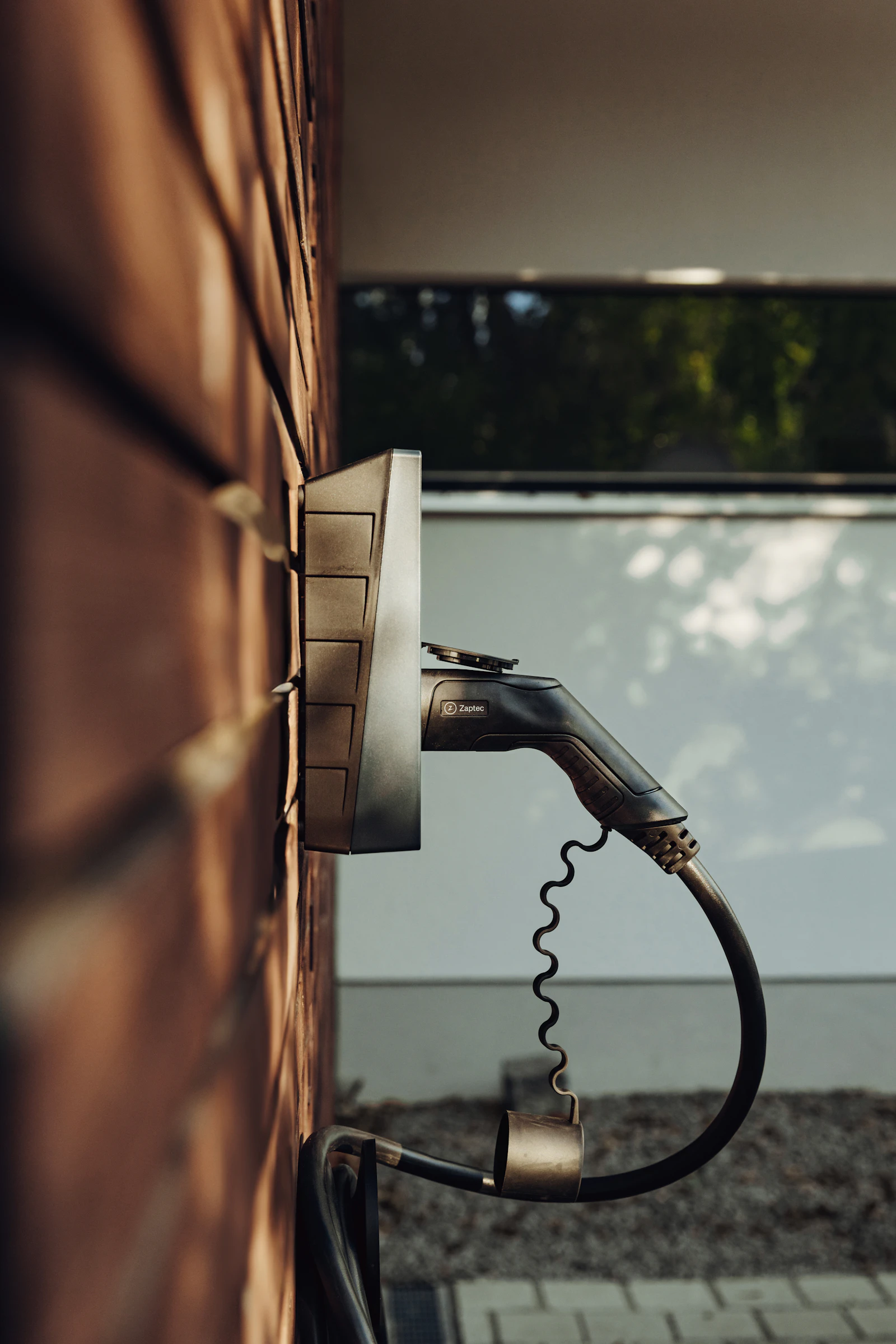

A Level 2 charger can either be hardwired directly into the home's electrical panel or plugged into a dedicated 240-volt outlet, similar to how a dryer connects. A plug-in unit offers flexibility, since it can be unplugged and taken along in a move, and it's often a bit simpler for an electrician to install. A hardwired unit is generally considered slightly more weather-resistant for permanent outdoor installations and skips the outlet and plug as an extra point of potential failure, but it's a more permanent installation.
- Plug-in Level 2 charger: more flexible, portable between homes, needs a dedicated 240V outlet installed.
- Hardwired Level 2 charger: more permanent, often preferred for outdoor or garage installations exposed to weather.
What determines the actual installation cost
The single biggest cost variable is how far the charger location is from the home's electrical panel and how much spare capacity the panel already has. A garage close to the panel with room on the breaker box is a straightforward, relatively inexpensive job; a detached garage, a long cable run, or a panel that's already near capacity and needs an upgrade adds real cost. Getting quotes from more than one licensed electrician is worth it here specifically because the price range for what looks like a similar job can vary widely based on these site-specific factors.
Permits and code requirements
Most municipalities require an electrical permit for a new 240-volt circuit and charger installation, and skipping it can create real problems later, from insurance issues after an electrical fire to complications when selling the home if unpermitted electrical work is discovered. A licensed electrician familiar with EV charger installations typically handles the permit and inspection process as part of the job.
The permit isn't just bureaucratic overhead. It means a qualified inspector confirms the circuit was sized and installed correctly for the load it needs to carry, which matters for both safety and any future insurance or resale questions.
Choosing amperage: bigger isn't automatically better
Level 2 chargers are available in a range of amperages, commonly 32, 40, or 48 amps, which directly affects charging speed. A higher-amperage charger charges faster but requires a correspondingly larger circuit and often costs more to install if the electrical panel needs upgrading to support it. Matching the charger to your actual vehicle's maximum onboard charging rate, rather than buying the largest available charger, avoids paying for capacity the car can't actually use; check your specific EV's maximum AC charging rate before choosing a charger. Most electricians will also check whether your home's main electrical service, typically 100, 150, or 200 amps for a modern home, has enough headroom left after accounting for existing major appliances before recommending a specific charger amperage, since this is usually the real limiting factor rather than the charger itself.
Rebates and incentives worth checking before you install
Many utilities and states offer rebates specifically for home EV charger installation, sometimes covering a meaningful portion of the equipment and installation cost, and some utilities offer discounted off-peak electricity rates for EV charging on a separate meter or circuit. These programs change fairly often, so it's worth checking your specific utility's current offerings and your state's clean vehicle incentive programs before finalizing a purchase, since claiming a rebate sometimes requires using an approved installer or charger model. A simple way to start the search is checking the U.S. Department of Energy's Alternative Fuels Data Center, which maintains a searchable database of current state and utility incentives.
Always use a licensed electrician
A home EV charger installation involves a dedicated high-amperage circuit, and improper installation is a genuine fire risk. This is not a project suited to a confident DIY attempt unless you are yourself a licensed electrician; the cost of professional installation is small compared to the risk of getting a high-amperage circuit wrong.
Frequently asked questions
Do I need a Level 2 charger, or is the cable that comes with the car enough?
It depends on your daily driving distance and how much time the car sits parked overnight; a Level 1 cable is often sufficient for short daily commutes with 8 or more hours to charge overnight, but anyone driving a longer daily distance or wanting a meaningful buffer typically finds a Level 2 charger necessary.
How long does a typical home EV charger installation take?
A straightforward installation with an existing panel that has spare capacity often takes just a few hours in a single visit; a job requiring a panel upgrade or a long cable run to a detached garage can take a full day or occasionally require a follow-up visit.
Can I install a home EV charger if I rent rather than own?
It requires landlord approval in nearly all cases, since it's an electrical modification to the property, but many landlords are open to it, especially with a plug-in charger that could theoretically be removed, and some rebate programs specifically address renter installations with landlord consent.
